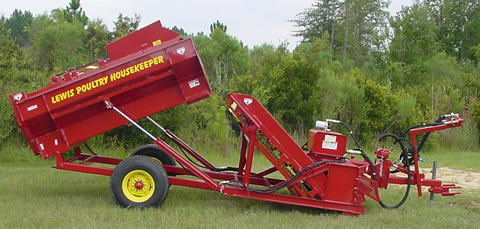

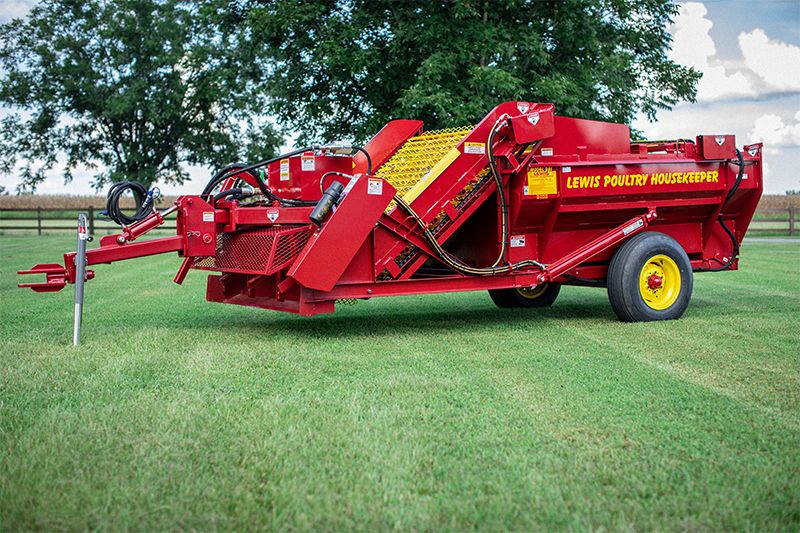

Fast, simple operation when stockpiling is needed. The DB-1 has the same capacity and horsepower requirements as the #2 and makes cleanout faster with the dumping feature. Total cleanout may also be accomplished by adding the optional solid bars to the conveyor.
| Working Height | 64″ |
| Overall Length | 19′ |
| Overall Width | 84″ |
| Weight | 4450 lbs (empty) |
| Throat | 69″ |
| Capacity | 112 cu. ft. |
| Tires | 9.5L x 16 |
| Required PTO Horsepower | 40 HP |
| Head Width | 79″ |
| Hydraulic Oil | AW-68 |
| PTO Hydraulic Pump | 16 gpm |
| Oil Reservoir Capacity | 20 gal |
Attach optional equipment to your Lewis Brothers products to make jobs easier, reduce work time, and ensure thorough cleaning. Replacement parts are available upon request from your local dealer.
For more information about ordering replacement parts please contact us at 912.367.4651
Solid bars are available on model’s #2, #3, #3.5, #4, #DB-1 & #DB-4. By adding the solid bars, the operator can convert from de-caking to total cleanout in a short time.
