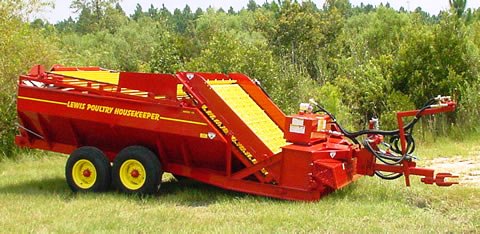

Housekeeper Model 4

The #4 Housekeeper is designed to increase productivity by an additional 20% above the #2 and #3 due to the wider head on the machine. This allows for much faster operation and requires a minimum of 60hp for the tractor. Like all other models, the #4 can be customized with various options to meet the individual needs of the grower.

Category:

Specifications

Working Height 73″
Overall Length 22.5′
Head Width 69″
Weight 5300 lbs (empty)
Capacity 175 cu. ft.
Tires 12.5L x 16
Tires (Tandem Optional) 9.5L x 15
Required PTO Horsepower 60 HP
Hydraulic Oil AW-68
PTO Hydraulic Pump 22 gpm
Oil Reservoir Capacity 30 gal

Equipment Options

Attach optional equipment to your Lewis Brothers products to make jobs easier, reduce work time, and ensure thorough cleaning. Replacement parts are available upon request from your local dealer.

For more information about ordering replacement parts please contact us at 912.367.4651

Standard Equipment:

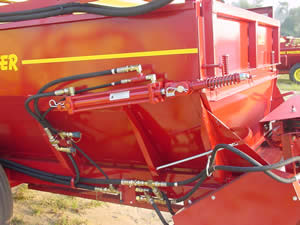

Hydraulic Tailgate

Hydraulic TailgateThe Hydraulic Tailgate is available on all units that spread and makes the unloading process faster and easier.

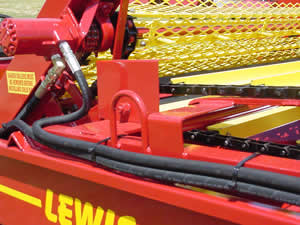

Hydraulic Loading / Leveling Kit

Hydraulic Loading - Leveling KitAvailable on model’s #2 & #3 and reduces repair cost by removing the need for belts and pulleys. The hydraulics deliver a more consistent torque which makes the machine operate more efficiently.

Hydraulic Tongue

Optional Equipment:

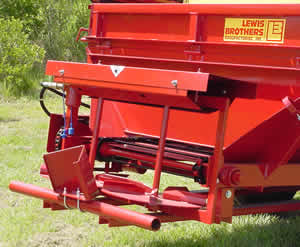

Spinner Assembly

spinner assemblyThe optional spinner assembly is available on model’s #2, #3, #3.5, #4, #5 & #5LP and is just what you need to spread litter on fields or to apply fresh material to the house floor. The spinners can be removed when the job calls for unloading only.

Solid Bar Kit

Solid Bar KitSolid bars are available on model’s #2, #3, #3.5, #4, #DB-1 & #DB-4. By adding the solid bars, the operator can convert from de-caking to total cleanout in a short time.

Tandem Axle

Tandem AxleThe tandem axle is available on model’s #3.5, #4, #5, #5LP, #DB-2, #DB-2LP, #DB4 and the Spreader Body. The tandem axle provides a wider base and can absorb rough terrain.

Electric Control Valve

Manuals & Parts

Download/View Owners Manual (pdf)

Download/View Parts Book (pdf)
